20kV SCB9 Cast Resin Distribution Transformer Dry Type

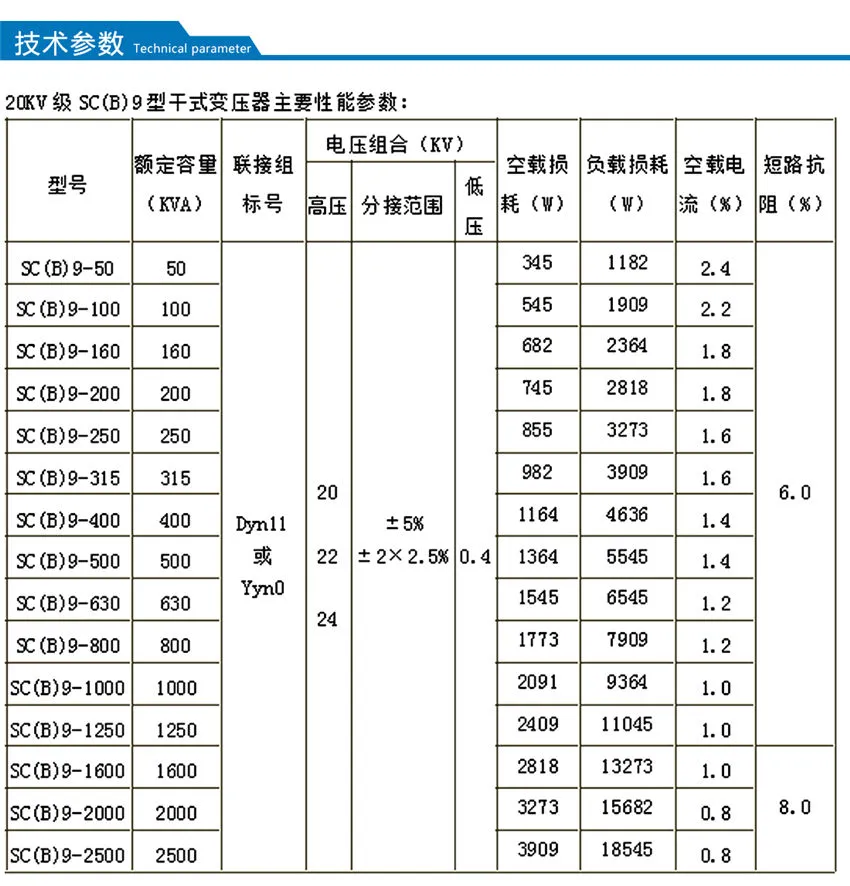

Structural Features

Box-type Coils

The low-voltage windings are wound with integral copper foil and F-class turn insulation on special low-voltage foil winding machines. Foil-type coils effectively solve prominent problems of low-voltage, high-current coils such as high short-circuit stress, ampere-turn imbalance, poor heat dissipation, winding spiral angle, and unstable manual welding quality. Meanwhile, the winding ends of our transformers are sealed and cured with resin for superior moisture and pollution resistance. Lead copper bars are welded by automatic argon arc welding for high connection reliability.

Temperature Control Device

The transformers are equipped with BWDK series signal thermometers, with temperature-sensing elements embedded in the middle of low-voltage windings. The device can automatically detect and cyclically display the operating temperature of each phase winding, and is equipped with overtemperature alarm and tripping functions for safe operation.

Product Advantages

• Low Loss & Energy Saving: Excellent power-saving effect, economical operation and maintenance-free performance.

• Safe & Environmentally Friendly: Flame-retardant, fireproof and pollution-free, suitable for direct installation in load centers.

• Easy Installation & Low Cost: Maintenance-free design, simple installation, and low comprehensive operating cost.

• Superior Moisture Resistance: Operates normally under 100% humidity, and can be put into use without pre-drying after shutdown.

• High Performance: Low loss, low partial discharge, low noise and strong heat dissipation capacity; can operate at 150% rated load under forced air cooling.

• Reliable Temperature Protection: Equipped with a complete temperature protection and control system to ensure safe and stable operation.

• Compact & Lightweight: Small volume, light weight and small floor space; installation cost is optimized without the need for oil drain pools, fire-fighting facilities and backup power supplies.
