Resin Transformers vs. Mineral Oil Transformers: A Comprehensive Analysis of Costs, Applications, and Sustainability

Transformers are the core hubs of power transmission and distribution, and their selection directly impacts grid safety, operating costs, and environmental compliance. Resin transformers (represented by epoxy resin cast dry-type transformers) and mineral oil transformers, as mainstream types, have distinct characteristics in terms of cost, application suitability, and sustainability due to differences in insulation media and structure. This article focuses on key customer concerns, dissecting the critical differences between the two, and providing practical references for selection decisions.

Resin Transformers ＆ Mineral Oil Transformers Cost Comparison

Transformer cost considerations need to span the entire life cycle, from "procurement-installation-operation-maintenance-disposal," rather than being limited to the initial purchase price. The cost differences between the two types of transformers stem from fundamental differences in materials, processes, and maintenance models, adapting to different budget plans and operational needs.

Initial Purchase Cost: Mineral Oil Transformers Have an Advantage

Under the same capacity and material configuration, the purchase price of resin transformers is generally 25%-50% higher than that of mineral oil transformers, with the difference being more significant for large-capacity models. The core reasons are concentrated in two aspects:

Material Costs

The price of solid insulation materials such as epoxy resin is about 30% higher than that of mineral insulating oil, and if the resin transformer uses all-copper windings, the cost will further increase by 20%-30% (although all-copper windings have lower conductive losses and longer lifespan, the short-term purchase pressure is greater);

Process Costs

Resin transformers require a vacuum casting and sealing process, resulting in a longer production cycle and higher equipment investment, while mineral oil transformers have a mature process, a simpler production process, and less equipment investment, effectively controlling manufacturing costs.

For customers who are budget-sensitive, pursue short-term cost savings, and have complete supporting protection conditions, the initial purchase advantage of mineral oil transformers is particularly prominent.

Installation and Protection Costs

The cost differences in the installation phase mainly stem from the different safety protection requirements. Mineral oil transformers are highly flammable, and a malfunction can easily cause a fire.  They require the construction of oil containment pits and firewalls, as well as dedicated fire safety distances.  In some scenarios, leak prevention devices are also necessary.

These protective measures significantly increase installation costs [1][4]. In contrast, resin transformers utilize an oil-free design, and their insulating materials have flame-retardant and explosion-proof properties. They do not require additional fire protection or leak prevention facilities and can be installed directly in building structures or densely populated areas, significantly reducing initial installation and protection costs.

Operation, Maintenance, and Disposal Costs: Resin Transformers are More Economical in the Long Run

Mineral oil transformers require continuous maintenance costs. The insulating oil needs to be replaced every 5-8 years, with each oil change and oil quality testing costing approximately 5%-8% of the total equipment price.  Regular monitoring of oil quality and seal integrity is also required, resulting in high annual maintenance costs.

Resin transformers, on the other hand, are "maintenance-free," requiring no oil changes or oil quality testing.  Only simple dust cleaning is needed annually, resulting in significantly lower annual maintenance costs compared to mineral oil transformers.

During the disposal phase, mineral oil is considered hazardous waste and requires specialized disposal according to hazardous waste treatment standards. The disposal process is complex and costly, and in the event of an oil leak, the costs of soil and water pollution remediation must also be borne.

Resin transformers do not have the pressure of waste oil disposal.  At the end of their service life, they only need to be disposed of according to general industrial solid waste regulations, resulting in lower disposal costs and reducing potential losses from environmental pollution.

Application Scenarios

The application boundaries of the two types of transformers are primarily determined by their insulation characteristics, heat dissipation capabilities, and environmental adaptability.  A comprehensive assessment considering the installation environment, capacity requirements, and safety standards is necessary; there is no "one-size-fits-all" solution, only the "most suitable option."

Resin Transformers: The Preferred Choice for Indoor and Safety-Prioritized Scenarios

With their advantages of being oil-free, flame-retardant, and low-noise (45-55dB), resin transformers are more suitable for indoor scenarios with high safety and environmental cleanliness requirements. Its core application scenarios include:

- High-density occupancy areas: High-rise buildings, shopping malls, hospitals, schools, etc., meeting the mandatory requirements of GB50016-2014 fire safety regulations for Class A fire-resistant buildings, avoiding safety risks caused by oil leaks and fires;

- Precision equipment environments: Data centers, semiconductor factories, laboratories, etc., with low partial discharge and minimal electromagnetic interference during operation, preventing oil contamination from affecting the operation of precision equipment;

- Space-constrained scenarios: Urban substations, building basements, etc., with a compact structure and light weight, requiring no fire separation distance, thus improving space utilization;

- Small to medium capacity requirements: 10kV level, distribution scenarios with capacities below 1000kVA, such as residential areas and small commercial complexes, meeting daily power distribution needs and suitable for indoor installation.

I

t should be noted that resin transformers have limited heat dissipation capabilities, a higher temperature rise limit under rated load, and weaker short-term overload capacity, making them unsuitable for large-capacity, long-term high-load operation scenarios. Additionally, they are sensitive to environmental humidity, requiring relative humidity to be controlled at ≤85% (non-condensing), and requiring additional dust covers in environments with high dust concentrations.

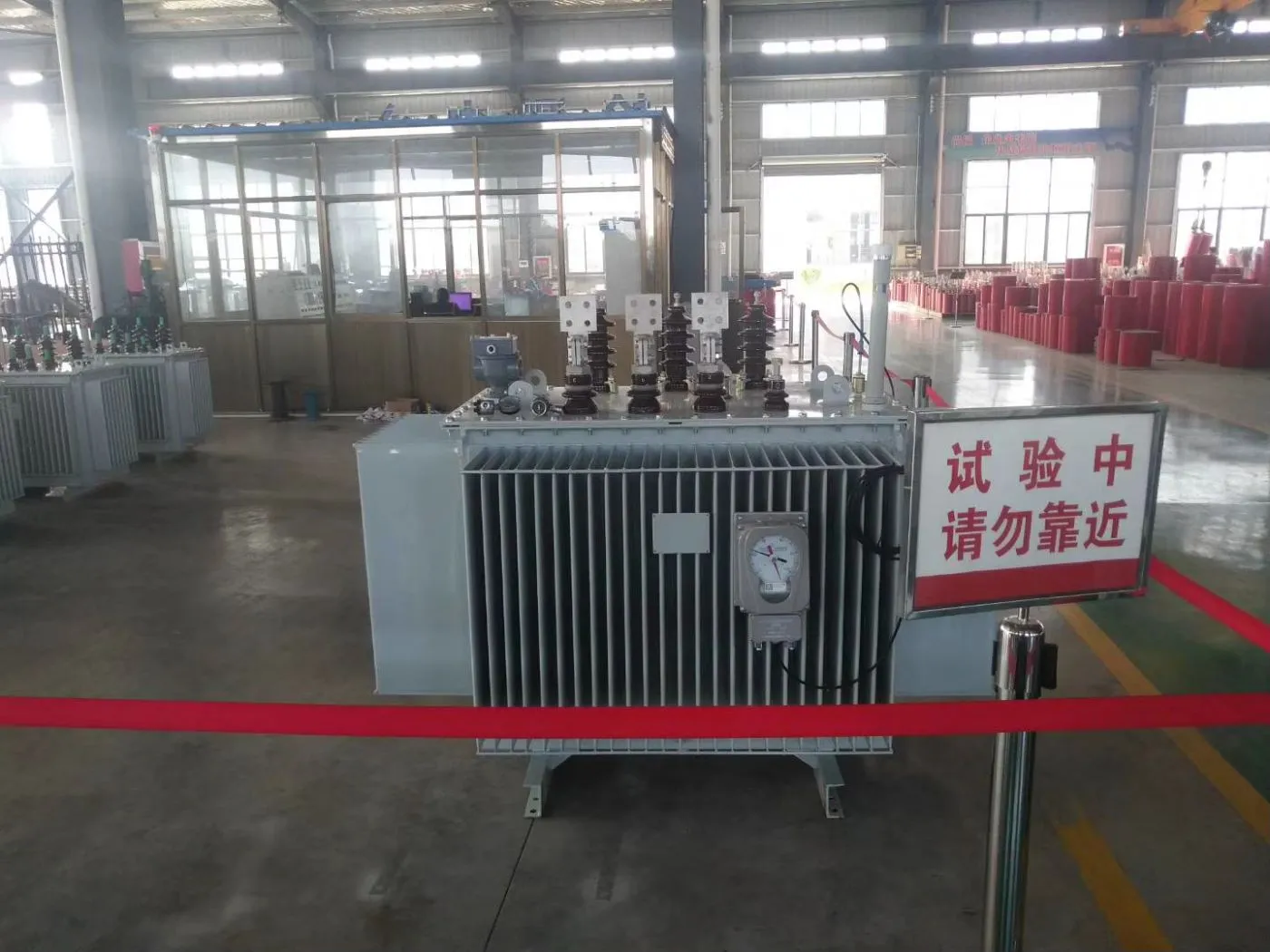

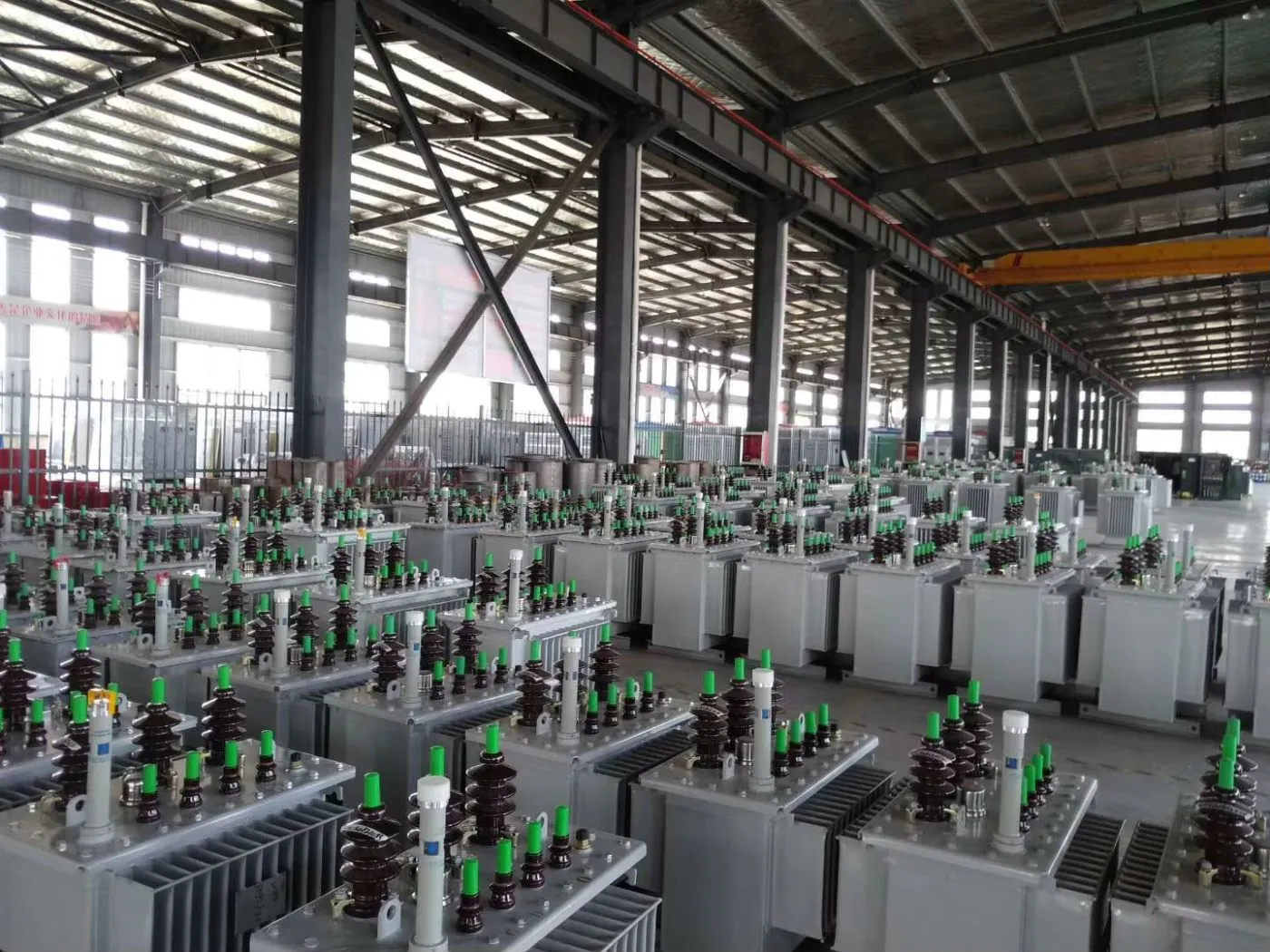

Mineral Oil Transformers: The economical choice for outdoor, large-capacity scenarios

Mineral oil transformers, relying on their excellent heat dissipation performance (insulating oil efficiently dissipates heat through convection), strong overload capacity (1.5 times the rated current for continuous operation for 2 hours), and environmental tolerance, are more suitable for outdoor, large-capacity power transmission and distribution scenarios. Its core application scenarios include:

- Outdoor power transmission and transformation projects: 110kV and above high-voltage power transmission and transformation, outdoor substations, capable of adapting to a wide temperature range of -30℃ to +40℃, with pollution resistance level up to Class IV, suitable for dusty and humid outdoor environments [4];

- Industrial high-load scenarios: Steel, chemical, mining, and other enterprises, capable of withstanding impact loads, suitable for long-term high-load operation requirements, and with relatively relaxed maintenance conditions;

- Large-capacity power distribution scenarios: Total power distribution for industrial parks and large factories with a capacity of over 10000kVA, with significant economic advantages, and heat dissipation efficiency that meets the needs of high-capacity operation;

- Remote unattended scenarios: Rural power distribution stations, remote mining area power distribution, strong environmental adaptability, low failure rate, and suitable for unattended operation and maintenance modes.

Due to fire safety limitations, mineral oil transformers are strictly prohibited from being installed in densely populated indoor core areas, and outdoor installation requires strict implementation of fire prevention and leak prevention measures to avoid environmental pollution.

Sustainability: Aligning with "dual carbon" goals, balancing environmental protection and long-term value

Environmental Protection: Resin transformers are more in line with green compliance requirements

The core environmental hazards of mineral oil transformers are concentrated in oil leakage and waste disposal. Mineral oil is not easily biodegradable and is classified as hazardous waste. Once leaked, it will pollute soil and water sources. The polycyclic aromatic hydrocarbons (PAHs) it contains are classified as carcinogens, posing a long-term threat to the ecological environment.

Resin transformers have no oil leakage risk, fundamentally eliminating the problem of oil pollution. However, in the production process, epoxy resin relies on petrochemical derivatives, and the production of 1 ton of epoxy resin emits approximately 4.5 tons of carbon dioxide equivalent, and the curing process releases a small amount of volatile organic compounds. After disposal, it needs to be properly landfilled due to its non-biodegradability.

It is worth noting that mineral oil transformers are also being upgraded to be more environmentally friendly. Some products use biodegradable natural ester insulating oil to replace traditional mineral oil, with a biodegradation rate exceeding 90%, and a breakdown voltage more than 15% higher than traditional mineral oil, which to some extent alleviates the environmental disadvantages .

Energy Efficiency: Mineral Oil Transformers Have a Slight Edge

Mineral oil has better heat dissipation efficiency than epoxy resin, resulting in lower no-load losses during operation.  No-load losses are only 0.3-0.6% of the rated capacity, while resin transformers have no-load losses of 0.5-0.8% of the rated capacity. For large-capacity scenarios with long-term continuous operation, the energy-saving advantages of mineral oil transformers are more significant, effectively reducing energy consumption and carbon emissions, aligning with the "dual carbon" goals.

While resin transformers can reduce losses by using all-copper windings and optimizing the core structure, they cannot completely surpass mineral oil transformers. However, combined with their low maintenance characteristics, their overall life-cycle energy consumption remains competitive.

Recyclability and Long-Term Value: Different Strengths

The metal components of mineral oil transformers, such as the core and windings, are recyclable, but the recycling and disposal of the insulating oil is difficult and costly, with a low recycling rate. They have a longer service life, reaching 25-40 years with proper maintenance, demonstrating long-term value through stable operation.

The metal components of resin transformers are also recyclable, but the recycling of epoxy resin windings is more difficult, and currently, disposal is mainly through landfill. Their service life is 20-30 years, slightly shorter than mineral oil transformers, but due to their maintenance-free nature and lack of environmental hazards, they reduce long-term environmental risks and disposal costs, highlighting their long-term value.

How to Choose the Right Transformer

Prioritize the application scenario: Indoor, densely populated areas, safety first → choose resin transformers; Outdoor, large capacity, high load → choose mineral oil transformers (or environmentally friendly natural ester mineral oil transformers);

Calculate the total life-cycle cost: Limited short-term budget, professional maintenance team available → mineral oil transformers are an option; Seeking long-term maintenance savings and reduced environmental risks → choose resin transformers;

Summary

As a power transformer supplier, we recommend that customers consider their installation environment, capacity requirements, budget planning, and environmental goals for personalized selection. For further refinement of the selection process, please provide specific scenario parameters, and we will match you with the optimal transformer product to achieve safe, economical, and environmentally friendly power transmission and distribution.
